Mechanical Seals - Single Coil Spring Rubber Bellow Seal

Type RS21 mechanical seal is a common industry standard unbalanced seal, has single coil spring. It is generally used in centrifugal pumps, chiller, compressors and other pumping equipment.

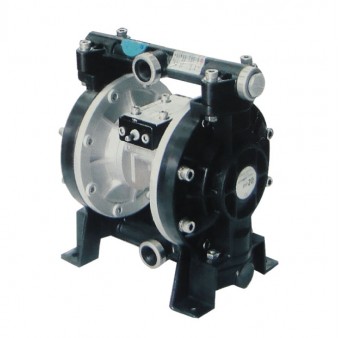

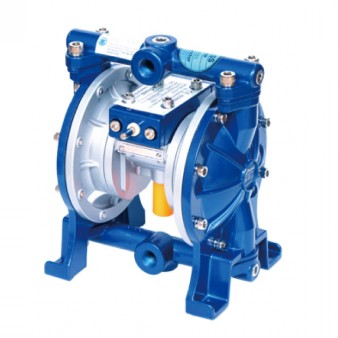

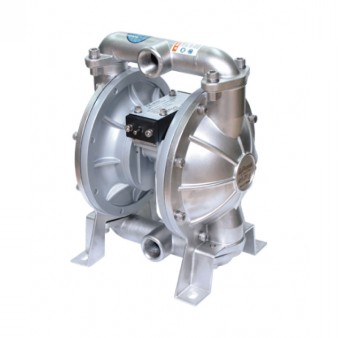

Fluid Input Size (1 inch)
Max. Pressure 8 bar
Fluid Input Size 1” NPT
Air Input Size 3/8" NPT
Min. Starting Pressure - Planar Valve 1.6 bar
Min. Starting Pressure - Low-Pressure Valve 0.7 bar
Max. Passage Amount 45.19 G.P.M(180 LPM)
Maximum Pump Speed 400 cpm
Each Cycle Capacity 0.45 L
Max. Air Consumption Capacity 960 ml/min
Particle Maximum Diameter ∅6mm
Lift Range 5.48m Wet/ Dry
Net Weight 15 kg
Carton Box Size (cm) 28.5x25x37.5

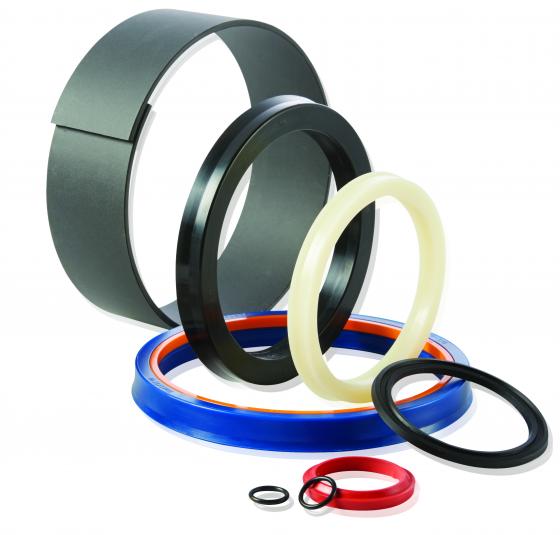

The function of the Bearing or wear ring is to guide the piston and piston rod of a hydraulic cylinder, as well as to withstand arising side loads. At the same time, it prevents any metal-to-metal contact, which will damage and score the surfaces and eventually cause seal damage, leakage and component damage.

Hallite offer bearings in various types of materials all of which offer high wear-resistance and demonstrate excellent friction properties.

Our T63 polyacetal wear ring is suitable for both fluid and pneumatic cylinder applications, the T87bronze filled PTFE bearing is suitable for higher temperature applications. A glass filled nylon wear ring (T533) offers high bearing load capacity over a broad range of temperatures, whilst our high strength nylon bearing (T540) is suitable for telescopic applications.

The T506, which is a woven fabric reinforced polyester resin bearing is available in three forms, cut rings, spiral lengths and flat coils, and is compatible with a wide range of fluids, and is used extensively in mining applications.

Shim Stock Sheet Material

We'll customize any shim gasket to your specification needs!

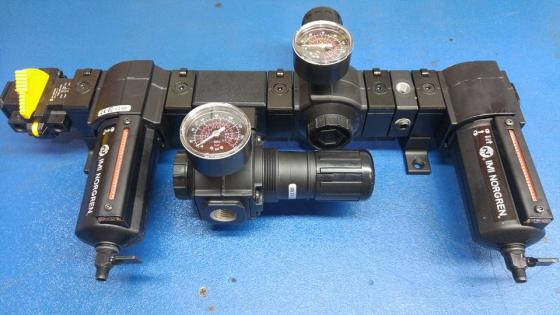

Norgren FRL Assembly

Filter, regulator, lubricator (FRL) assemblies are pre-pack Filter, regulator and lubricator (FRL) assembly packaged or modular assemblies of air filters, pressure regulators, lubricators, and gauges. Air leaving a compressor is hot, dirty, and wet and can cause damage to equipment and tools if it is not treated.

The filter cleans compressed air by trapping solid particles and separating liquids, such as oil and water, that are entrained in the compressed air. Filters are installed in the air line upstream of regulators, lubricators, and all pneumatically-powered tools and equipment. They remove contaminants from pneumatic systems, preventing damage to equipment and reducing production losses due to contaminant-related downtime.

Pressure regulators control fluid pressure in compressed air systems. Regulators are also known as pressure reducing valves (PRVs). Pressure regulators maintain a constant output pressure regardless of input pressure variations and demands made on the system by downstream components.

Lubricators add controlled quantities of oil into the compressed air system to reduce the friction between moving components within air tools and other equipment that are powered by the system. Adding lubrication oil to the system also clears compressor oils that travel through the system in vapor form. To prevent build-up of oil within system components, mineral oils are added to the system to flush away the deposits.

Downstream equipment flow and pressure requirements determine the correct regulator and lubricator for the application. Manufacturers offer flow characteristics charts on their products to help chose the correct combination of regulators and lubricators.

There are several choices for regulator type.
• General-purpose regulators are designed for typical industrial use; they
generally operate only above atmospheric pressure.
• High-pressure regulators are rated for inlet pressures higher than general
purpose, typically over 1,000 psi.
• Low-pressure regulators have special design characteristics for precise
control of pressures typically below 15-20 psi.
• Differential or bias regulators maintain a pressure differential between two
locations in the system.
• Pressure-reducing valves provide a sub-circuit with a supply of fluid at a
pressure that is less than the pressure in the main circuit.

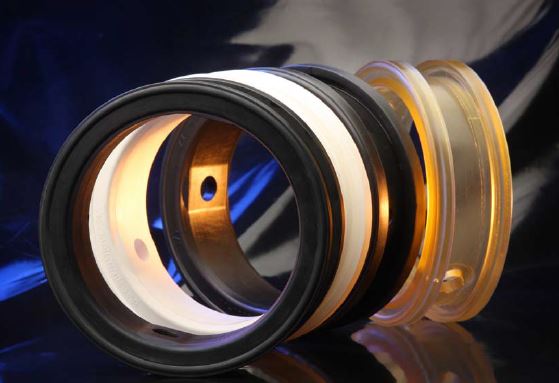

Butterfly Valves - Polyurethane

A butterfly valve is a quarter-turn valve used to regulate flow. A metal disc in the body of the valve is positioned perpendicular to the flow in the closed position, and rotated one quarter of a turn to be parallel to the flow in the fully opened position.

Polyurethane (more commonly referred to as “urethane”) has successfully been used to line pipelines for a wide range of industries because of its ability to resist abrasive wear in many applications such as slurries, pneumatic conveying, hopper isolation, sediment, dry powder, dust extraction, mineral sands, mining, potash and fertilizer.

Urethane seats are primarily used for their ability to resist abrasive wear. Urethane can be used on a reasonably broad range of services. Urethane will withstand severe impact, recover its original shape after distortion and resist abrasion better than other elastomers such as EPDM and BUNA-N.

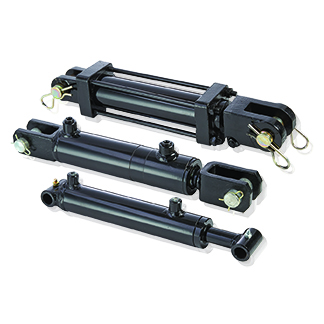

We offer a wide selection of Replacement Cylinders such as Single and Double Acting, Tie-Rod, Welded, Telescopics, Hercules Brand, Prince, Customer Hoits, Commercial, Hyco, Southern Hydraulic Cylinders and Snow Plow Cylinders.

WE REPAIR COMPRESSORS & CYLINDERS INHOUSE!

WE PROVIDE SERVICE & MAINTENANCE IN THE GTA!

The rod seal is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Leakage through the rod seal can reduce equipment performance, and also in extreme cases can cause environmental issues.

Hallite offers a wide range of hydraulic rod seals for both single-acting and double-acting systems. These include a unique profiled NBR energised polyurethane (PU) seal, and a specifically designed three element seal for the mining industry comprising of an O-ring energiser, PU shell and a polyacetal anti-extrusion ring.

Particular attention should be paid to pair the rod seal and the wiper for the best sealing performance. If a less aggressive rod seal is paired with an aggressive wiper, the wiper can scrape off the microscopically thin film of oil that remains on the rod in microscopic surface imperfections during the return stroke, resulting in system leakage.

Piston Seals or Piston Rings are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurised fluid does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore.

The choice of piston seal is decided by the way in which the cylinder operates. For a cylinder which is exclusively single-acting, capable of sealing dynamic pressure from one side (unidirectional), it is always best to choose the type of seal designed to provide optimum sealing qualities for single-acting functions.

The best sealing capacity of a double-acting cylinder, capable of sealing dynamic pressure from both sides (bidirectional), is achieved by choosing a double-acting seal.

A piston design where two single-acting seals on the piston for a double-acting cylinder are used can easily give rise to a breakdown. The reason is that a very high pressure can be trapped between the seals.

Piston seals, both single and double-acting, can be designed for and used with integrated or separate back-up rings and guide rings.

Wipers are installed in the sealing configurations of hydraulic cylinders to prevent contaminants such as dirt, dust and moisture from entering the cylinder as they retract back into the system.

Contamination can cause significant damage to the rod, cylinder wall, seals, and other components, and is one of the primary causes of premature seal and component failure in a fluid power system.

Hallite offer a wide range of hydraulic wipers in High Performance Hallite® 361 polyurethane, Nitrile®, Hythane® 181 and other polyester based materials, along with press-fit metal caged ranges.

The wiper seal is the most undervalued seal type in the hydraulic cylinder in relation to its important function. Particular attention should be drawn to its selection, the surrounding environment and service conditions must also be taken into special consideration.

The primary purpose of the buffer seal is to protect the main rod seal from the effects of shock pressure loading.

It is important that the buffer seal allows adequate lubrication of the main seal and does not cause a pressure trap between itself and the main seal. The Hallite designs of buffer seals have features that help to prevent this possibility.

O-Ring Kits, O-Ring Splice Kits, Back-Up Ring Kits, Retainer Ring Kits, Assortment Kits, Installation Tools, Splice Tools, Cutting and Chopping Tools, Removal Tools, Dismantling Tools, Remanufacturing Tools and Measuring Tools

Buffer Rings buffer the pressure spikes of hydraulic systems. They act as a primary rod seal, and at the same time enable trapped fluid sealed by the secondary seal, which is down stream of the buffer, to be pumped back into the system. When a buffer ring is used in combination with a lip seal, the resulting sealing system provides long life with an exceptionally dry rod. Buffer seals are commonly used for rod seal application only.

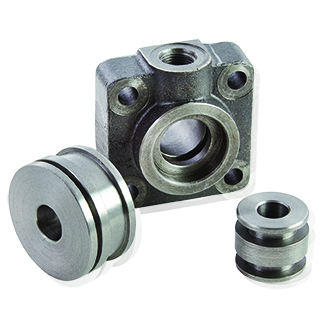

Stocking a wide selection of Mobile and Industrial Cylinder Repair Parts including Glands, Caps, Pistons, Mounts, Bearings, Ball Ends, Bushes and Ports for Mobile applications. Mounts, Pins and Lock Nuts.

 Oil Seals are used to create a tight seal and prevent hydraulic fluid from leaking.

Primarily used on piston heads, plungers or rams in hydraulic or pneumatic service. Its mechanical sealing surface is at its periphery.

Commonly used because of economical cost, excellent service life, efficient assemble, universal acceptance, and simple accessories.


Piston cups are constructed of rubberized fabric. Cups with no hole are center punched.

U-cups are a lip seal, named for the cross-section’s distinctive “U” shape. They are used for both dynamic and static applications. The “U” shape energizes the sealing lips as the application pressure increases. This brilliant design has been modified to create several unique configurations. These modifications provide additional benefits for a variety of applications.

Wipers are primarily designed to stop contaminants from entering a cylinder on the rod, however, they can also act as a secondary rod seal. If contaminants were allowed to enter the cylinder it could lead to damage of your rod and/or the damage of other sealing components. A properly selected wiper could help reduce the need for unscheduled maintenance and even increase the time between maintenance cycles.

This product is stable on quality and technology and highly-recognized worldwide.

Suitable industries: Automized industries, furniture, aerospace, beverage, food, ceramics, chemical, construction, cosmetics, sewage, painting, plating, medical, package, boat-building, textile, carpet, electronics, wine-making, environmental,etc.

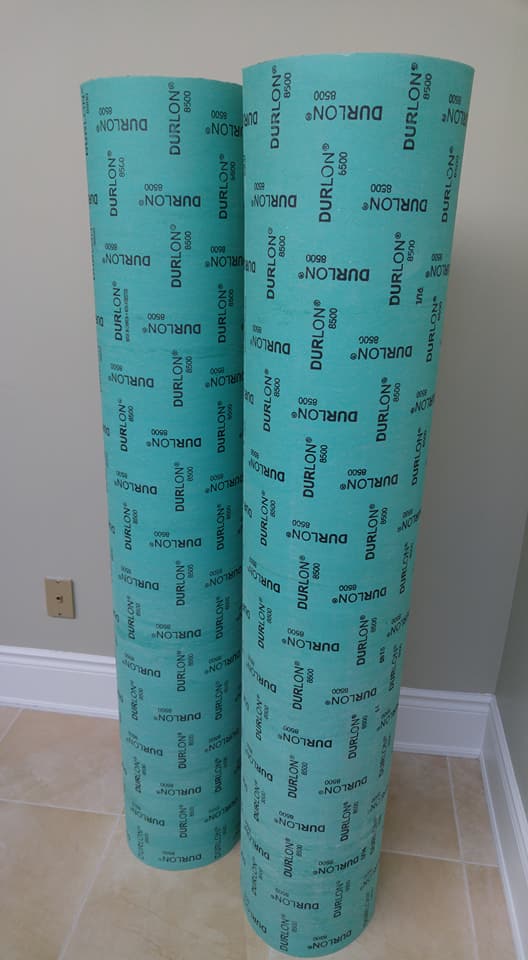

8500 Aramid-Inorganic/NBR Rubber Binder

Compressed Sheet Gasket Material & ASTM F104: F712120-A9B3E12K5L151M6

We stock Thickness: .030 & .062

We can get you Thickness: .093 & .125

Application: Our workhorse material, DURLON® 8500 is excellent in steam, natural gas, soybean processing and with new generation refrigerants. A high quality general service gasket material for use in a wide range of services in pulp and paper, food, beverage, pharmaceutical, chemical, refinery, gas pipeline and general industry.DURLON® 8500 exhibits good compressibility and recovery, excellent sealability, flexibility and cutting characteristics.

Composition: DURLON® 8500 contains high-strength aramid and inorganic fibers bonded with high-grade Nitrile (NBR) rubber.

Fire testing: DURLON® 8500 has successfully passed a modified version of the API 607 fire test. The duration of the direct flame portion of the test is 30 minutes and the flange temperature must reach 1200°F in the first 15 minutes. The internal pressure is held at a constant 30 psig. After the flame is shut off, the fixture is immediately water quenched with an overhead water blast. Leakage must not exceed 100 ml/min after a 6 minute cool down to successfully pass the test. Subsequent leakage testing is also performed.

Anti-stick properties: Much effort has gone into improving the anti-stick release agents of all compressed DURLON® products. All DURLON® compressed gasket materials have passed the MIL-G-24696B Navy Adhesion Test (366°F/48 hrs).

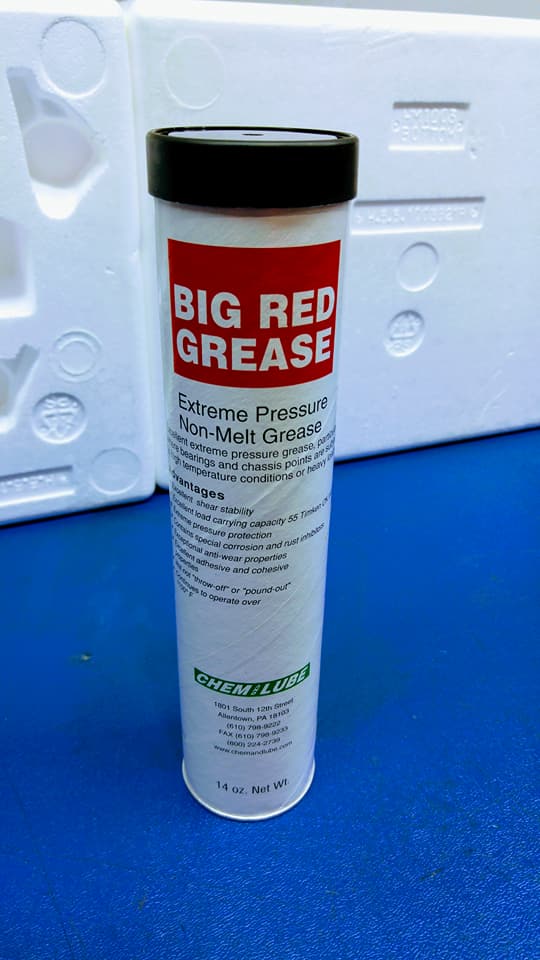

Big Red Grease - Extreme Pressure Non-Melt Grease

Excellent extreme pressure grease, particularly where bearings and chassis points are subject to high temperature conditions or heavy loads.

Advantages:

• Excellent shear stability
• Extreme load carrying capacity 55 Timken OK load
• Extreme pressure protection
• Contains special corrosion and rust inhibitors
• Exceptional anti-wear properties
• Excellent adhesive and cohesive properties
• Will not “throw-off” or “pound-out”
• Continues to operate over 1100°F

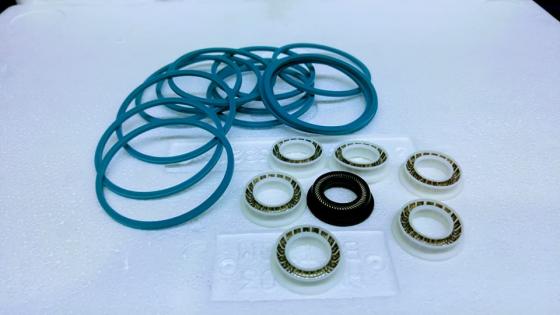

TFE Energized Seals

High Pressure/High Temperature TFE

Machined to Specs

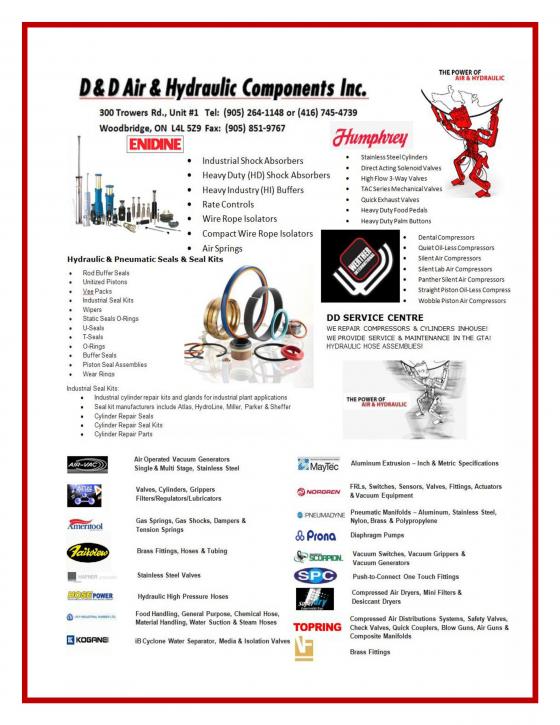

DD LINE CARD

AIR-VAC ENGINEERING - SPECIALIZES IN AIR OPERATED VACUUM GENERATORS/PUMPS

AIRTAC INTERNATIONAL - KNOWN FOR ITS QUALITY PNEUMATIC VAVLES, ACTUATORS, PROCESS VALVES & AIR PREPARATION PRODUCTS PRICED RIGHT

AMERITOOL - SPECIALIZES IN GAS SPRINGS & DAMPERS

D & D AIR & HYDRAULIC COMPONENTS - NEWLY OPENED SERVICE CENTRE FOR HYDRAULIC HOSE ASSEMBLIES, IN-HOUSE REPAIR OF COMPRESSORS & CYLINDERS, LOCAL MAINTENANCE

FAIRVIEW - BRASS FITTINGS, HOSES & TUBING

FLEXTRAL - FOR ALL YOUR HYDRAULIC & INDUSTRIAL TUBING NEEDS

HAFNER PNEUMATIKS - STAINLESS STEEL VALVES

HALLITE SEALS INTERNATIONAL - MANUFACTURES A WIDE RANGE OF ROD/GLAND, PISTON, & STATIC SEALS

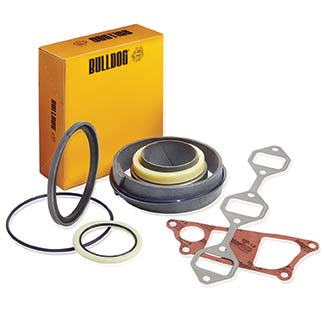

HERCULES BULLDOG SEALING PRODUCTS - HYDRAULIC SEALS & SEAL KITS FOR ALL HEAVY EQUIPMENT BRANDS

HOSE POWER - HYDRAULIC HIGH PRESSURE HOSES

HUMPHREY - STAINLESS STEEL CYLINDERS, DIRECT ACTING SOLENOID VALVES, HIGH-FLOW 3-WAY VALVES, TAC SEIRES MECHANICAL VALVES, QUICK EXHAUST VALVES, HEAVY DUTY FOOD PEDALS & HEAVY DUTY PALM BUTTONS

IRP - FOOD HANDLING, GENERAL PURPOSE, CHEMICAL HOSE, MATERIAL HANDLING, WATER SUCTION & STEAM HOSES

ITT ENIDINE - WIDEST RANGE OF SHOCK ABSORBERS (ADJUSTABLE AND NON-ADJUSTABLE, AIR SPRINGS, WIRE ROPE ISOLATORS, AIR MOUNTS & RATE CONTROLS

KOGANEI - IB CYCLONE WATER SEPARATOR, MEDIA & ISOLATION VALVES

MAYTEC - FOR PRECISE CAPABILITIES OF ALUMINUM EXTRUSION, GIVE US A CALL. WE CARRY BOTH METRIC AND INCH SIZES & CAN CUSTOMIZE TO YOUR SPECIFIC APPLICATION NEEDS

NOLATRON - LEADER IN ANTI-TIE DOWN CONTROL MODULES

NORGREN - KNOWN FOR ITS QUALITY PNEUMATIC VALVES, ACTUATORS, PROCESS VALVES & AIR PREPARATION PRODUCTS

PARKER/SMC - HYDRAULIC CYLINDERS

PNEUMADYNE - PNEUMATIC MANIFOLDS

PRONA TOOLS - DIAPHRAGM PUMPS

SCORPION - VACUUM SWITCHES, VACUUM GRIPPERS & VACUUM GENERATORS

SPC - PUSH-TO-CONNECT ONE TOUCH FITTINGS

SUPER-DRY - COST-EFFECTIVE, HEAVY DUTY PURIFICATION, SEPARATION, DEHYDRATION & FILTRATION EQUIPMENT FOR COMPRESSED AIR

TOPRING - COMPRESSED AIR DISTRIBUTION SYSTEMS, QUICK COUPLERS, AIR HOSES, BLOW GUNS, AIR GUNS & SAFETY VALVES

VERSA - BRASS FITTINGS

WERTHER INTERNATIONAL - SILENT AND OIL-FREE AIR COMPRESSORS

 • Metric & Imperial

 COME CHECK OUT OUR NEW SERVICE CENTRE FOR HYDRAULIC HOSE ASSEMBLIES!

Braided Packing

• Acrylics
• Aramids
• Carbon
• Metal
• Valve Tem
• Phonolic
• PTFE
• Vegetable Fibre
• Aramid Corner

Braided from continuous Acrylic blended fiber, Style 3000G is impregnated with our proprietary high temperature lubricant, and pre and post lubricated with high purity graphite flake. Our unique lubrication process insures a dense but flexible general service packing, which can be used in most steam, water, salt water, oil, and mild acid or alkali applications.

Construction: Interlock Braid
Temperature Rating: 500º F / 260ºC
pH Rating: 4 – 10
Shaft Speed Rating: 1500 FPM / 8 MPS
Pressure Rating: 300 PSI / 20 BAR

Vee pack sets are multiple-lip (chevron) seals, usually composed of a male and female adaptor and a group of three or five vee rings, are popular for sealing rods and pistons in medium to heavy duty applications and are compatible with both single and double acting cylinders.

The Hallite Type 720 is a ready to fit complete piston. The steel piston has a non-metallic bearing material moulded over the outer diameter using a special proprietary process. It is then finish machined to provide a tight tolerance with the bore of the tube and also for the installation of the chosen seal.

Originally designed and patented by Hallite Seals over 25 years ago, the Unitised Piston continues to establish and develop itself as a unique solution for our customers many and varied applications.

An accepted solution for Construction, Off Highway and Agricultural cylinders, the Unitised Piston provides the OEM customer with proven extended service life whilst significantly reducing manufacturing and assembly costs.

Produced today in a wide range of sizes, bearing and seal materials, Hallite's exclusive Unitized Piston is available off the shelf in numerous standard metric and inch sizes.

Gaskets

• Full Face & Ring Gaskets
• In All Materials – Paper & Rubber
• Materials available for Rubber Gaskets
  Viton/NBR/Neoprene/EPDM – FDA Approved
• Materials available for Paper Gaskets Durable/Febre
  Paper/Vebetable Oil Treated
• Paper/VTFE/Garlock/Klinger and also Shim Stock
• Natural Rubber
• Closed Cell Blended Sponge Rubber
  (Neoprene/EPDM/SBR Blend)
• Closed Cell EPDM Sponge Rubber
• Closed Cell Nitrile (Buna-N) Sponge Rubber
• Neoprene Open Cell Spong
• Silicone Foam
• Cork
• Durlon – Non Asbestos Compressed Sheet

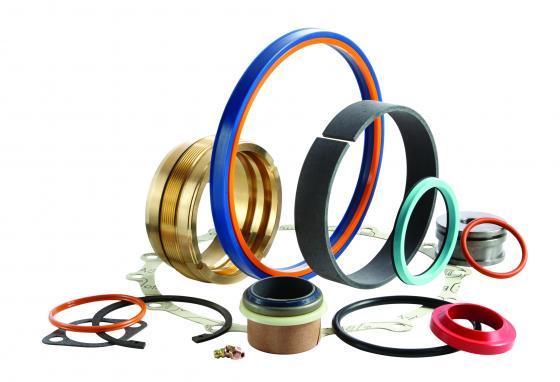

Pneumatic & Hydraulic Seals and Seal Kits!

Your one stop shop for Hydraulic Seals, Pneumatic Seals, Rod Buffer Seals, Unitized Pistons, Vee Packs, Industrial Seal Kits, Wipers, Static Seals ORings and so much more!

We carry inch and metric size seals for all your hydraulic and pneumatic sealing needs including: U-Seals, T-Seals, O-Rings, Buffer Seals, Vee Packing, Piston Seal Assemblies, Wipers, Wear Rings and Back-up Rings, etc.

The Hallite Type 607, Type 608 piston seals, Type 609 rod seal, Type 661 cushion seal and the Type 851 and Type 853 combined rod / wiper seals are manufactured in Hallite Hythane® and have been specifically designed for use in pneumatic applications.

Hallite Hythane® is a specially developed elastomer, formulated to give optimum properties, particularly wear, elasticity, flexibility and outstanding compression resistance.

Features
•  Ultra long life
•  Ultra low friction
•  Water resistant
•  Wide temperature capability

Other specialist seal designs exist for solving particular problem applications. A wide range of ancillary products are available - Type 506 bearings, acetal bearings, 'O' rings etc...

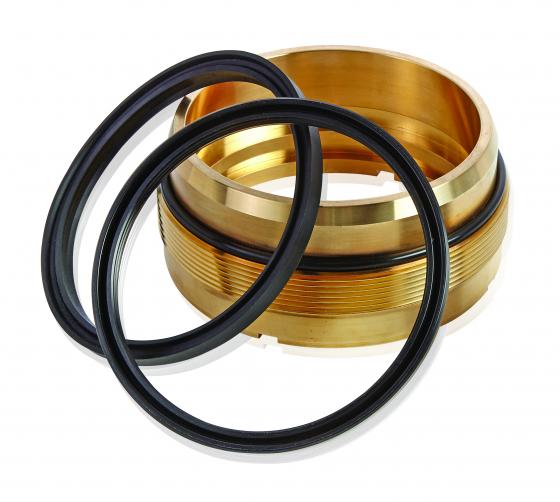

Industrial Seal Kits

• Industrial cylinder repair kits and glands for industrial plant
  applications
• Seal kit manufacturers include Atlas, HydroLine, Miller, Parker,
  Sheffer and more
• Cylinder Repair Seals
• Cylinder Repair Seal Kits
• Cylinder Repair Parts

The O-ring is the most widely used seal in industry today. It is simple in concept, easy to install, can be used as a double-acting seal, can seal pressures to over 5,000 psi in static and dynamic applications and, best of all, is very economical.While simple in concept, it can be very sophisticated in its applications. O-rings are available in 349 standard inch sizes as set up by the Aerospace Standard 568 published by the society of Automotive Engineers.

The Capped T-seal (CTS) is a double-acting, high pressure, high performance piston seal, which is designed to accommodate large extrusion gaps. The major benefits of this design are its excellent extrusion resistance, low friction and low wear, all presented in a compact and stable design.

Vee Packings are multiple-lip (chevron) seals comprised of a group of endless rings and are popular for sealing rods and pistons. They can be used for low or high pressure applications and with single or double acting cylinders.
