SPC
We, the professional pneumatic maker, have been contributed to the development of pneumatic automation industry with constant quality improvement and technology innovation since 1980. Under the vision " For the professional maker of pneumatic equipment",
One-Touch Fitting

 ¿ëµµ
One-Touch joints used in pneumatic piping.
Used for a wide variety of models to meet all demands.

Ư¡

Easy to connect/disconnect tube by one touch.
PC Type is useful for piping in confined space, given its six-angle wrench processing inside.
Flexible for directional tube with its revolving construction of body (PL & PT Type)
Elliptical(Oval) sleeve makes its possible to apply and remove the tube easily in confined space.
Fitting is equipped with O-ring or Teflon coating on the thread.

»ç¿ë¿¹

PL Model
- Flexible for directional tube with its revolving construction of body (PL & PT Type)


The elliptical(Oval) sleeve
- The elliptical(Oval) sleeve helps easy application or removal of the tube in confined space.

Two-Touch Fitting

¿ëµµ
Nut-tightened air connector used for pneumatic piping.

Ư¡

Effective use at the place of vibration or rocking.
Long life-span made of plastic..
Excellent in anti-corrosion and anti-chemicals.
Excellent in vibration.

»ç¿ë¿¹

Case in Use
- Connect the tube into the body to tighten it by cap nut.
- Excellent in anti-chemicals with POM material and effective at
  the place of vibration and rocking.

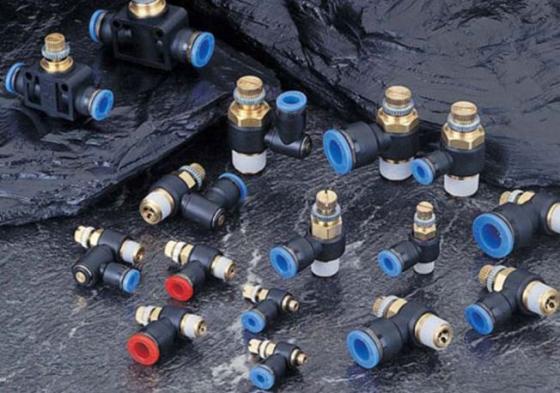

Speed Controller



¿ëµµ
Valve used for controlling the operation speed of a driving device.
Used for movement of machines such as cylinder, pneumatic finger, etc.


Ư¡

The compact and light body permits use in confined space.
Precisely controlling the wide range of airflow.
The compact design provides a comparable range of airflow as the conventional speed controller does.

»ç¿ë¿¹

OUT Type
- The way to control of airflow from the thread to the sleeve.
- Air passes freely from the sleeve to the thread.

IN Type
- Air passes freely from the thread to the sleeve.

FLAT Type
- Air flows from each side of sleeve.
- The way to control of Free flow or Control flow upon piping in accordance with the signal on the body.
Compact One-Touch Fitting

¿ëµµ
Compact One-Touch joints used in small type of pneumatic piping.
A wide variety of models are available to meet all your needs.

Ư¡

Easy to connect/disconnect tube by one touch.
The world's smallest quick-fitting joints feature 40% smaller volume ratio and 20% smaller O.D. ratio in comparison to the conventional type.
Compact type fittings nickel plated are excellent in rust resistance.
The elliptical(Oval) sleeve helps easy application or removal of the tube in confined space.

»ç¿ë¿¹

POC & PCC Models
- The hexagonal shape inside of the body makes it possible to tighten the fitting by use of a hexagonal wrench.
- A hexagonal wrench must be used due to the round exterior.

PLL & PL Models
- Long brass body helps tightening with easy away from any obstacles.

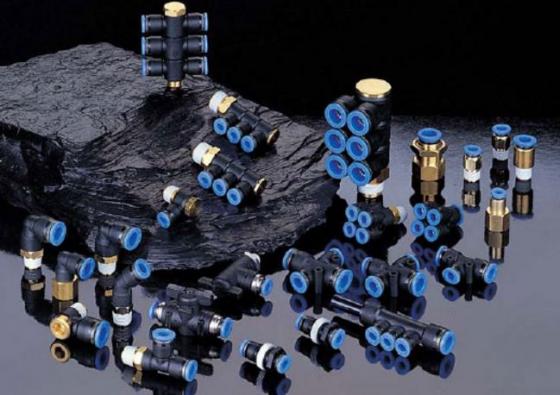

G One-Touch Fitting



¿ëµµ
One-Touch joints used in pneumatic piping.
Used for a wide variety of models to meet all demands.


Ư¡
1. Smaller
- Smaller O.D and length offer the application in confined space.

2. Stronger Body with PA(Nylon) material
- Working Temperature -20 ~ +80¡É, Working Pressure(max.) 20 Bar (kgf/§²)

3. Labs (Silicon, Oil) Free for Packing
- Special application for Silicon free can be used.

4. RoHS Compliance Fitting
- New Fitting meets RoHS regulations and is environment-friendly.

5. More Durable Fitting
- More Durable Fitting from new structure and raw material prolongs stock & use


»ç¿ë¿¹

PL Model
- Flexible for directional tube with its revolving construction of body (PL & PT Type)

The elliptical(Oval) sleeve
- The elliptical(Oval) sleeve helps easy application or removal of the tube in confined space.
Stop Fitting
¿ëµµ
Installed where the pneumatic connections are changed frequently.
Used at laboratory of for instructing pneumatic connections.


Ư¡

The airflow will stop, upon disconnecting the tube and airflow will pass, upon connecting the tube.

»ç¿ë¿¹

Case in Use
- The airflow permits upon connecting the tube.
- Used where the airflow stops without a valve or useful the pneumatic
  connections are changed frequently.
